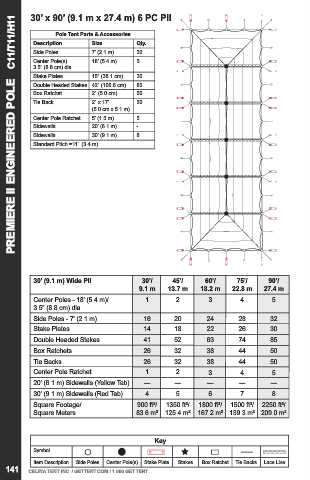

30’ x 90’ (9.1 m x 27.4 m) 6 PC PII
PREMIERE II ENGINEERED POLE C11/T11/H11
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 32
Center Pole(s) 18’ (5.4 m) 5
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 30
Double Headed Stakes 42” (106.6 cm) 85
Box Ratchet 2” (5.0 cm) 50
Tie Back 2” x 17’ 50
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 5
Sidewalls 20’ (6.1 m) -
Sidewalls 30’ (9.1 m) 8
Standard Pitch =11’ (3.4 m)

30’ (9.1 m) Wide PII 30’/ 45’/ 60’/ 75’/ 90’/
9.1 m 13.7 m 18.2 m 22.8 m 27.4 m
Center Poles - 18’ (5.4 m)/ 1 2 3 4 5
3.5” (8.8 cm) dia.
Side Poles - 7’ (2.1 m) 16 20 24 28 32
Stake Plates 14 18 22 26 30
Double Headed Stakes 41 52 63 74 85
Box Ratchets 26 32 38 44 50
Tie Backs 26 32 38 44 50
Center Pole Ratchet 1 2 3 4 5
20’ (6.1 m) Sidewalls (Yellow Tab) --- --- --- --- ---
30’ (9.1 m) Sidewalls (Red Tab) 4 5 6 7 8
Square Footage/ 900 ft²/ 1350 ft²/ 1800 ft²/ 1500 ft²/ 2250 ft²/
Square Meters 83.6 m² 125.4 m² 167.2 m² 139.3 m² 209.0 m²

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
